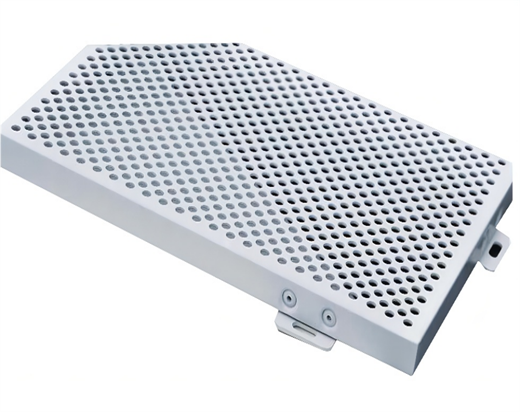

Product Name：Outdoor Punched Aluminum solid panel for curtain wall or facade
Brand：Guangdong Reinalite Industrial Co.,Ltd
Material：3003H24/1100H24 aluminum alloy
Color：customized design,choosed from RAL catalog or CBCC
Surface Treatments：
1,Powder coated(Ordinary/PE/Fluorocarbon powder)
2,PVDF (PPG,AKZO)

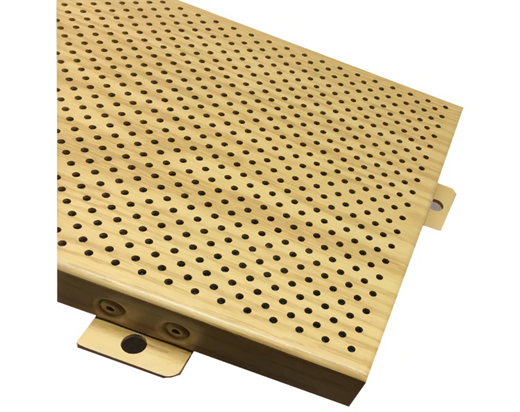

3,Woodgrain(Thermal Transfer Technology)
Pattern：Customized Design Available.
Thickness：1.5mm~3.0mm(customized design)
Regular Size：4000mm×1400mm(L×W)
Length：≤6000mm(according your detail drawings)

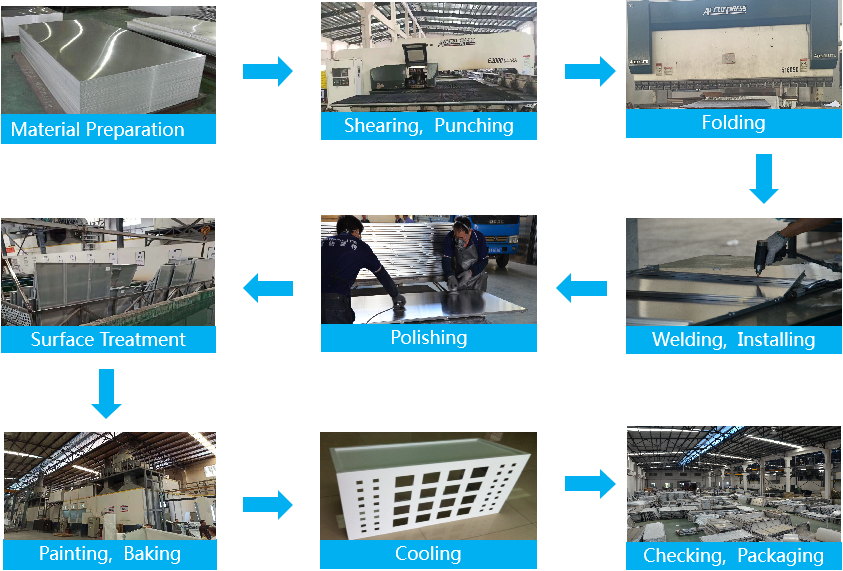

Process Equipment：CNC punching machine/ engraving machine
Application：Exterior facade curtain wall/outdoor decoration
Warranty：Up to15 Years based on different coating
Monthly Capacity：50000 square meters
Punched aluminum single plate is a new type of curtain wall material that uses high-quality aluminum alloy sheet as the base material, and is formed by CNC bending and other technologies, and the surface is sprayed with decorative coatings.
The surface of the aluminum veneer curtain wall is generally treated with fluorocarbon spraying after pretreatment such as chromization. The polyvinylidene fluoride resin (KANAR500) of fluorocarbon coating topcoat and varnish (KANAR500 is generally divided into two coatings, three coatings or four coatings. Fluorocarbon coatings have excellent corrosion resistance and weather resistance, and can resist acid rain, salt spray and various A kind of air pollution, excellent resistance to cold and heat, resistance to strong ultraviolet radiation, long-term retention of color, non-chalking, and long service life. Choose high-quality fluorocarbon coatings from world-renowned fluorocarbon coatings and coatings manufacturers, and color selection Wide range, customers can choose or provide swatch samples according to the swatches provided by the manufacturer.
· Light weight, good rigidity and high strength
· Strong three-dimensional effect, good decorative effect
· Good weather resistance and anti-pollution performance
· Anti-static, no dust absorption, easy to clean and maintain
· Easy assembly and disassembly, convenient maintenance
· Easy assembly and disassembly, convenient maintenance
· Diversified styles, patterns can be customized

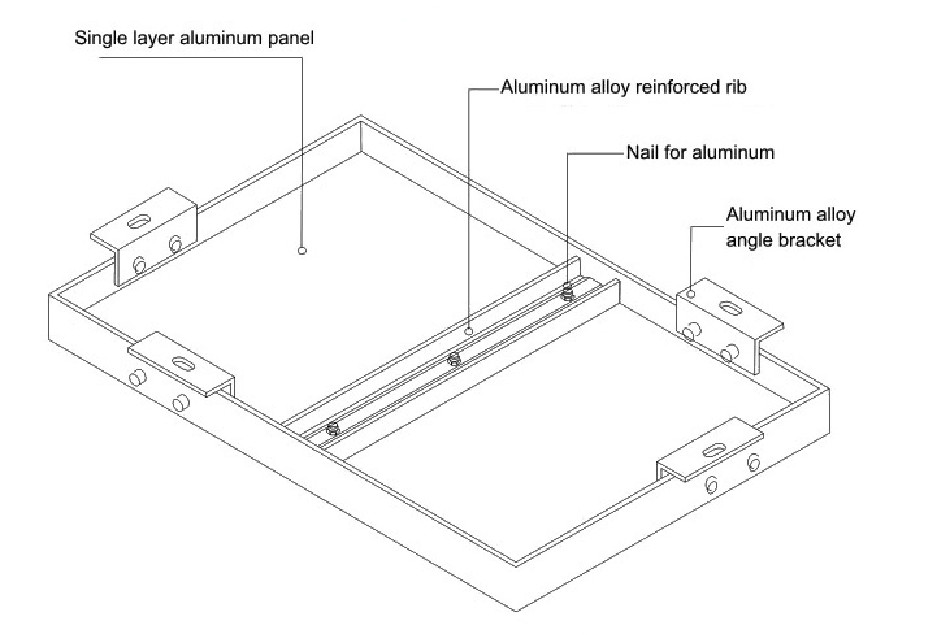

The aluminum panel curtain wall is mainly composed of panels, stiffeners, hanging ears, etc. Generally, a 20mm wide edge is folded around the panel; the hanging ears and the panel are mainly connected with blind rivets, and the panel is connected with the bone dragon through the hanging ears; the back of the panel is welded with bolts, and the reinforcing ribs and the panel are connected by bolts to form a firm Overall. The reinforcing ribs play a role in increasing the rigidity of the aluminum panel, ensuring the wind pressure resistance and flatness of the aluminum panel in long-term use. Its structure is shown in the figure:
The aluminum veneer is mainly composed of panels, reinforcing ribs and corner codes.
Conventional thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm.
Aluminum panel curtain wall is suitable for the decoration of various building interior and exterior walls, lobby facades, column decorations, elevated corridors, pedestrian bridges, elevator edging, balcony packaging, advertising signs, indoor special-shaped ceilings, etc.
